Main Technical Parameter
|
|||
|
Product Name
|

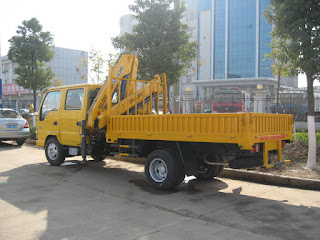

ISUZU Crane Truck Crane
|
Overall Dimension(mm)
|
6745×2386×3120
|
|
Carriage inner size (L*W*H)(mm)
|
3160×1790×380
|
Curb Weight (kg)
|
Approx 4060
|
|
Wheelbase (mm)
|
3815
|
Number of Axles
|
2
|
|
Appr/Dep Angle(º)
|
24/14
|
Max Speed(km/h)
|
80
|
|
Cab Allowed Persons
|
2+3
|
Cab type
|
Two row,
|
|
Chassis Technical Parameter
|
|||
|
Chassis Model
|
NKR77PLLWCJAY
|
Chassis Manufacturer
|
ISUZU Motor Co., Ltd
|
|
Gear Box
|
ISUZU 5 speed forward and 1 reverse
|
Transmission type
|
Manual
|
|
Steering Type
|
LHD
|
Brake System
|
Oil brake
|
|
Leaf Spring No.
|
8/6+5
|
Front/Rear tread(mm)
|
1504/1425
|
|
Drive Type
|
4x 2
|
Tire Spec.
|
7.00-16,7.00-R16
|
|
Engine Technical Parameter
|
|||
|
Engine Model
|
4KH1-TC
|
Engine Brand
|
ISUZU Motor Co., Ltd
|
|
Fuel Type
|
Diesel
|
Emission Standard
|
Euro 3
|
|
Displacement ( ml )
|
2999
|
Power (KW)
|
96(130hp)
|
Crane specifications
|
Model
|
SQ3.2ZK2
|
Unit
|
|
Max Lifting Moment
|
6.72
|
t.m
|
|
Max Lifting Capacity
|
3200
|
kg
|
|
Recommend Power Needed At Recommend Oil
Flow
|
14
|
kw
|
|
Max Oil Flow of Hydraulic System
|
25
|
L/min
|
|
Rated Pressure Of Hydraulic System
|
22
|
MPa
|
|
Oil Tank Capacity
|
60
|
L
|
|
Rotation Angle
|
370
|
Degree
|
|
Crane Weight
|
1200
|
kg
|
|
Installation Space
|
850
|
mm
|
|
SQ3.2ZK2 Lifting capability diagram
|
||||
|
Working radius (m)
|
2.1
|
4.15
|
5.8
|
7.3
|
|
Lifting capacity (kg)
|
3200
|
1300
|
950
|
650
|
